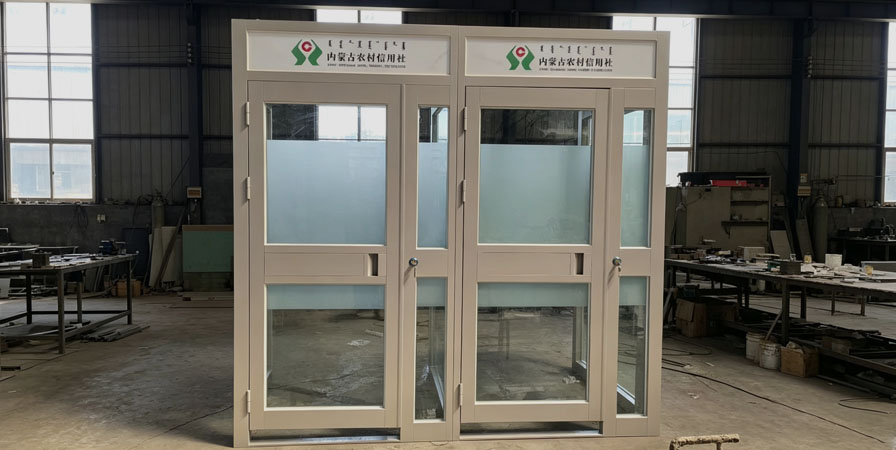

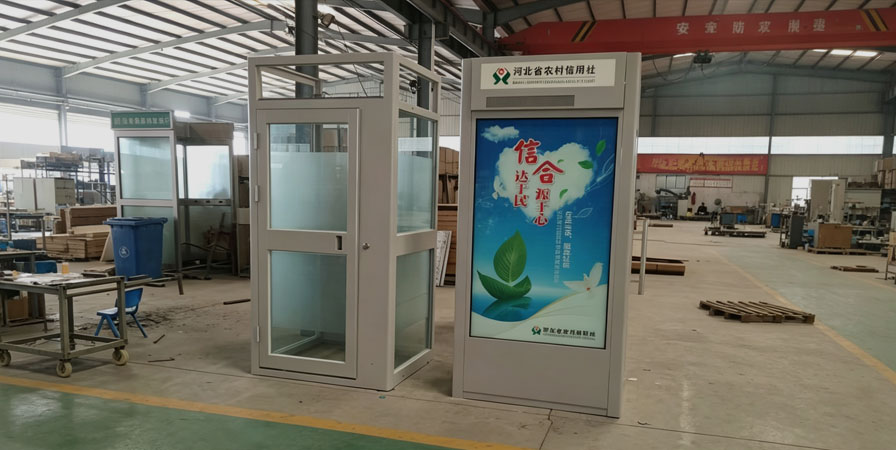

The bank security booth, also known as a self-service banking kiosk, is an outdoor enclosed security protection facility specially designed for bank self-service equipment. It is mainly installed in open outdoor areas such as street-side branches, residential communities, commercial areas, and factory surroundings. The booth provides an isolated protective space for ATM machines and cash deposit and withdrawal equipment, combining user operation safety, equipment protection, and dust and moisture resistance. It is a common supporting facility for outdoor self-service banking services.

Structural Features

1. The booth adopts an integrated steel structure modular design, prefabricated and assembled in the factory. It can be lifted and installed on site for convenient deployment.

2. The booth frame is welded with thickened square steel tubes, providing good structural integrity, even force distribution, and stable performance against wind pressure and external impact.

3. The front side is equipped with tempered protective glass windows, providing suitable visibility while balancing monitoring needs and physical protection.

4. The booth panels adopt sealing assembly technology with neat and tight joints, helping prevent rainwater, dust, and sand from entering the interior.

5. Reserved installation positions, cable channels, and ventilation points are provided inside the booth to support different types of self-service financial equipment.

6. The independent ground-mounted structure does not rely on surrounding walls, making it suitable for long-term placement in outdoor and open environments.

Safety Features

1. The fully enclosed protective structure helps reduce external interference and improves safety during self-service operations.

2. Equipped with security-standard protective door locks, the booth can be securely locked after closing, supporting equipment maintenance and night-time management.

3. The glass windows feature good impact resistance, helping withstand daily external collisions and reduce the possibility of equipment damage.

4. Reserved security monitoring installation points allow connection with cameras and alarm systems for continuous security monitoring.

5. The overall structure includes electrical insulation and waterproof treatment, making it suitable for changing outdoor weather conditions.

Humanized Design

1. The internal space layout is reasonable with a spacious operation area, allowing users to complete deposit and withdrawal operations comfortably.

2. Ventilation structures are reserved to maintain internal air circulation and reduce heat accumulation in enclosed spaces.

3. The exterior design is simple and organized, with colors matching professional banking environments and adapting to urban streets and community public spaces.

4. The smooth surface is easy to clean, allowing convenient daily maintenance and reducing operation management workload.

5. The modular structure supports additional accessories such as lighting systems, rain shelters, and service signs according to different branch requirements.

Surface Coating Process

The steel frame of the bank security booth undergoes multiple anti-corrosion pre-treatment processes, including oil removal, rust removal, acid washing, and phosphating, to remove oxidation layers and surface impurities.

The outdoor electrostatic powder coating is cured at high temperature to form a durable surface layer. The coating is thick and uniform with good adhesion, providing resistance to rain exposure, sunlight, aging, and corrosion. It is suitable for long-term outdoor use with reduced risk of fading, peeling, or cracking.

Dimensions and Specifications

1. Standard size: Length 2800mm × Width 2200mm × Height 2600mm. Customized dimensions are available according to equipment size and site conditions.

2. The main frame adopts thickened galvanized square steel tubes, providing stable construction for long-term outdoor installation.

3. The protective glass uses thickened tempered material with uniform light transmission and protective performance suitable for outdoor security facilities.

4. The bottom adopts waterproof and moisture-resistant insulation treatment to reduce ground moisture impact and protect internal financial equipment.

5. External cable routes are arranged neatly with complete waterproof interfaces to help reduce outdoor water leakage and electrical safety risks.

6. The product complies with general manufacturing standards for outdoor bank self-service equipment protection facilities and is suitable for supporting construction of various outdoor banking service locations.
