Intelligent compact shelving is modern‑day storage equipment integrating IoT electronic control and archive management systems. It applies to standardized archive rooms, big‑data archive depots, government archive rooms, and document repositories of enterprises and public institutions. Built upon conventional compact shelving structures, it adds functions including intelligent control, status monitoring and permission management to support the construction of modern smart archive rooms.

Structural Features

1. It adopts intelligently‑controlled mobile rack structure combined with standard steel frames for stable overall performance, supporting installation with multiple connected sets.

2. Racks are driven by intelligent variable‑frequency drive with adjustable travelling speed and smooth start‑stop buffer, free of impact or jitter during movement.

3. Enclosed assembled cabinet design together with sealing strips delivers sound tightness, beneficial for long‑term archive preservation.

4. Modular adjustable shelves allow flexible height adjustment according to the thickness of archive boxes, documents and vouchers to fit various storage specifications.

5. Modular cabinet construction enables easy disassembly and assembly. Additional rack groups can be added later for repository expansion with strong expandability.

6. Tracks are made of high‑precision cold‑rolled profiles for flat installation, ensuring accurate positioning and smooth, stable rack movement.

Safety Features

1. Equipped with intelligent infrared detection protection system to monitor personnel inside aisles; rack closing and movement will be disabled when people are present.

2. Intelligent anti‑pinch and obstacle‑triggered stop functions are available. The unit will cut off power and stop upon obstruction to reduce equipment safety risks.

3. Hierarchical permission unlocking and electronic locking are supported for designated‑person management and standardized archive access procedures.

4. Multiple electrical protections against overload, over‑current and short‑circuit secure circuit operation and lower the probability of electrical faults.

5. Mechanical anti‑toppling and limit devices are fitted on top and bottom of cabinets. Dual electronic‑and‑mechanical protection improves equipment safety.

Human‑Centered Design

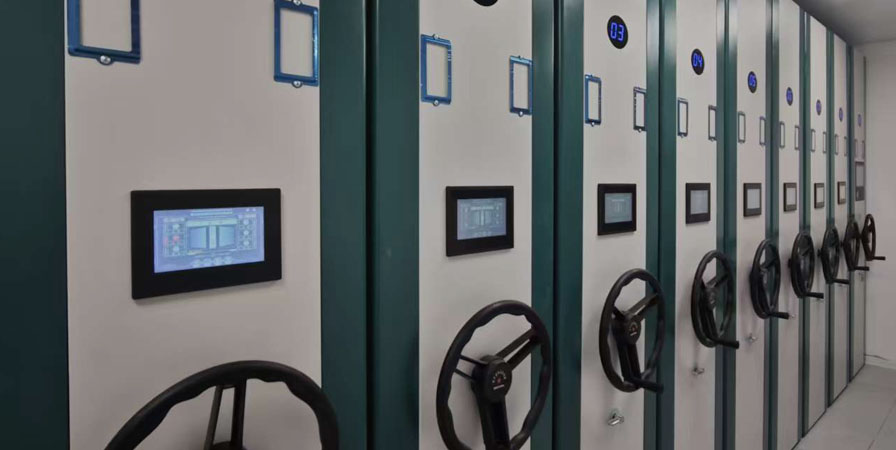

1. High‑definition digital intelligent control panel displays rack number, operating status and repository environmental data for intuitive and simple operation.

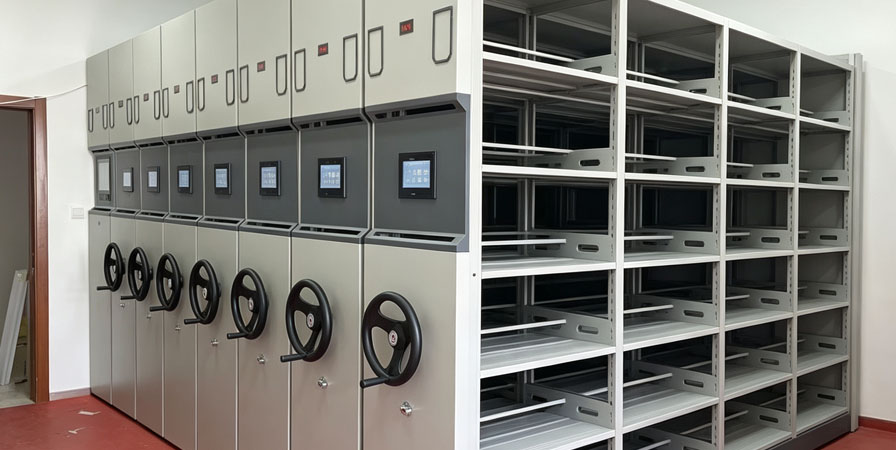

2. Three control modes: manual, electric and intelligent system. Manual emergency operation is available in case of equipment failure without interrupting daily usage.

3. Compatible with archive management software to realize digital management including archive warehousing, retrieval, positioning and access.

4. Low‑noise variable‑frequency operation generates soft running sound, suitable for long‑term use in indoor office repositories.

5. Reserved monitoring ports on cabinets support linkage with temperature‑humidity monitors and dehumidification devices.

Surface Coating Process

The whole cabinet is formed by one‑piece bending of cold‑rolled steel sheets. Sheets go through multi‑step anti‑corrosion treatments including degreasing, rust removal, pickling and phosphating to remove surface oxides and impurities.Eco‑friendly electrostatic powder spraying is applied and cured at high temperature. The coating shows uniform adhesion with smooth and delicate surface, featuring rust‑resistance, moisture‑resistance and wear‑resistance. Cabinets adopt plain and unified tones to match decoration environments of various standardized archive rooms.

Dimensions & Specifications

1. Standard complete‑set dimension: H2220mm × W880mm × D500mm, supplied with five adjustable shelves. Non‑standard custom sizes are supported.

2. Dedicated intelligent drive motor with variable‑frequency speed regulation and reasonable energy consumption, suitable for long‑duration continuous‑working conditions.

3. Uprights are made of thickened cold‑rolled steel sheets with multiple rows of adjusting holes for flexible shelf‑spacing adjustment to satisfy diverse storage requirements.

4. Integrally welded reinforced chassis provides even force bearing, stable operation and good resistance to wobble and deformation over long‑time service.

5. Reinforced bent shelves realize even surface stress and balanced load distribution, suitable for mass archive storage.

6. Dust‑proof, rat‑proof and moisture‑proof structures together with sealing design effectively improve archive storage conditions.

7. The complete set complies with equipment standards for smart archive repository construction and fits renovation projects of institutional archive rooms.
